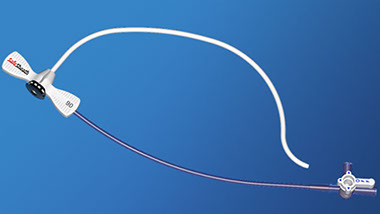

SAFESHEATH II WORLEY RIGHT-SIDED
Hemostatic-valved CS/RV Introducer System

  • FEATURES

    Curved shape designed specifically for making LV or RV access as easy as approaching from left side

    Enables access to the right atrium, for subsequent delivery of catheters into the coronary sinus or pacing leads into the right ventricle

    Virtually no chance of kinking during right-sided access introduction

    Uniquely shaped distal curve acts as a pivot point for CS access catheter, providing stability and control during lead placement and removal

    Extruded score line peel-away sheath for clean, even peeling during removal

    Ergonomic, easy-splitting break-away hub

    Hemostatic valve with low insertion and withdrawal forces permits multiple lead insertions without further interventions

    Convenient sideport with three-way stopcock for infusion and contrast injection

    French size printed on handle and indicated by color-coded introducer cap

    Elastomer snap-locking dilator connector with French size embossed on handle

    Reduced risk of blood loss and air embolism

  • DESCRIPTION

    The unique curve of the SafeSheath II Worley Right-sided introducer is designed to gain access to the right atrium for subsequent delivery of catheters into the coronary sinus or pacing leads into the right ventricle, making right-sided LV or RV access as easy as coming from the left.

    The SafeSheath II family of introducers combines a tear-away sheath and hemostatic valve to reduce back bleeding and the possibility of air embolism.

    The specially designed shape of the 23cm SafeSheath II Worley Right-sided Access Introducer makes right-sided LV or RV access as easy as coming from the left, virtually eliminating the kinking that sometimes occurs when approaching from the right side with a straight introducer.

    The unique distal curve when positioned in the high RA, provides a convenient pivot point for directing CS access catheters to the coronary sinus, such as the SafeSheath Worley Telescopic LV introducer system, creating a stable work platform for better control during lead placement, and reduced risk of lead dislodgement during CS catheter removal. The Right-sided introducer is also perfect for placing leads into the right ventricle and right ventricular outflow tract.

    The SafeSheath II Worley Right-sided Access Introducer is a breakthrough technology for left ventricular pacing from the right subclavian and is also an excellent platform for standard RV pacing.

  • SPECIFICATIONS

    SAFESHEATH II WORLEY
    RIGHT-SIDED ACCESS INTRODUCER

    Model

    Size

    Length

    Dilator Length

    SSR9

    9.0 French

    23cm

    28cm

    Each SafeSheath II Worley Right-sided Access Introducer System kit includes:

    One tear-away sheath w/side port

    One dilator

    One 18g needle

    One 10cc syringe

    One 50cm guidewire

    Five (5) kits per box
