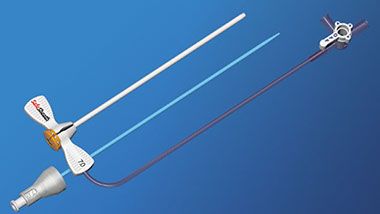

SAFESHEATH® II
Hemostatic Peel-away Introducer Systems

  • FEATURES

    Standard 13cm length and 23cm Long model for access beyond the right subclavian-SVC junction

    Extruded score line peel-away sheath for clean, even peel

    Longer, smoother sheath tip to dilator transition for ease during sheath insertion

    Lubricated hemostatic valve with low insertion and withdrawal forces yields greater control during lead manipulation, reducing risk of blood loss and air embolism

    Convenient sideport for infusion and contrast injection

    Wide range of French sizes

    French size printed on handle and indicated by color-coded introducer cap

    Elastomer snap-locking dilator connector with French size embossed on handle

    Ergonomic, easy-splitting break-away hub

  • DESCRIPTION

    In 1994, Pressure Products revolutionized vascular access with the introduction of the SafeSheath® hemostatic-valved, peel-away introducer system, providing problem-free vascular access during device lead placement for more than 18 years.

    Now, SafeSheath II advances the original design, continuing to revolutionize venous access by setting new standards for performance and features while facilitating better outcomes.

    SafeSheath II Introduced into the subclavian vein in the standard manner, the hemostatic valve of the SafeSheath II seals the device during lead introduction and positioning.

    The easy splitting, ergonomically-shaped break-away hub greatly simplifies sheath removal after lead or catheter placement. Extruded score line construction ensures a clean, even peel every time. A new elastomer snap-locking dilator connector assures a firm attachment to the sheath.

    The three-way stopcock side port  provides a convenient means of aspirating and flushing the introducer, as well as for contrast and fluid administration.

    Finally, the advanced design of the lubricated hemostatic valve enables low insertion and withdrawal forces, delivering greater control during lead manipulation.

    SafeSheath II Long  The 23cm Long provides access beyond the right subclavian-SVC junction, from both the left cephalic and subclavian veins. The extra length helps when upgrading existing systems by the addition of new leads and for atypical venous access sites—axillary or femoral. It also acts as a ‘supporting’ platform for the introduction of defibrillator leads.

  • SPECIFICATIONS

    SAFESHEATH II STANDARD

    Length

    13cm

    Dilator Length

    19.5cm

    Guidewire Length

    50cm

    Guidewire O.D.

    0.038"

    Model

    Size

    Hub Color

    SS6

    6.0 French

    Green

    SS7

    7.0 French

    Orange

    SS8

    8.0 French

    Blue

    SS85

    8.5 French

    Light Blue

    SS9

    9.0 French

    Black

    SS95

    9.5 French

    Light Black

    SS10

    10.0 French

    Fuschia

    SS105

    10.5 French

    Light Fuschia

    SS11

    11.0 French

    Yellow

    SS12

    12.0 French

    Brown

    SS125

    12.5 French

    Light Brown

    SAFESHEATH II LONG

    Length

    23cm

    Dilator Length

    28.5cm

    Guidewire Length

    60cm

    Guidewire O.D.

    0.038"

    Model

    Size

    Hub Color

    SSL6

    6.0 French

    Green

    SSL7

    7.0 French

    Orange

    SSL8

    8.0 French

    Blue

    SSL9

    9.0 French

    Black

    SSL10

    10.0 French

    Fuschia

    SSL105

    10.5 French

    Light Fuschia

    SSL11

    11.0 French

    Yellow

    Each SafeSheath II Introducer System kit includes:

    One tear-away sheath w/side port

    One dilator

    One 18g needle

    One 10cc syringe

    One guidewire (Standard-50cm / Long-60cm)

    Five (5) kits per box
