SAFESHEATH CSG EXTRUDED CORE
Hemostatic Peel-away CS Introducer System

  • FEATURES

    Innovative peel-away sheath with break-away hemostasis valve and radio opaque tip

    Multiple angles and a shapeable extruded core aid in CS lead placement

    Worley curve available in standard, long and jumbo sizes, for CS access in any anatomy

    Side port for “keep open” infusion and contrast injection

    Reduces risk of blood loss and air embolism

    Handles like standard peel-away introducer

    May be left in place during placement of other leads

    Permits lead exchange quickly, without further interventions or “sticks”

  • DESCRIPTION

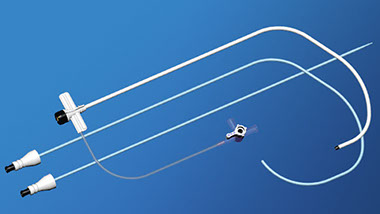

    The SafeSheath CSG Extruded Core Series is a splittable-valved, peel-away hemostatic introducer system that combines a radiopaque-tipped sheath with a shapeable, extruded core for CS access.

    SafeSheath CSG was designed to enter the coronary sinus and remain in position during angiography and lead placement, remaining hemostatic during subsequent procedures.

    SafeSheath CSG Worley  Incorpo­rating a unique sheath curve, the Worley is designed specifically for ventricular resynchronization therapy where the right-sided chamber is significantly dilated, its long gentle throw causing its tip to virtually fall into the coronary sinus OS. The CSG Worley is also made from crush-resistant material and is available in standard, long and jumbo sizes.

    SafeSheath CSG  The multipurpose 90° curve of our original CSG enables ease of CS cannulation, while the improved tip transition results in less traumatic tip placement. And now the introducer sheath is radio opaque-tipped for better fluoroscopic visualization.

    All CSGs can be used as a coronary sinus access platform for our family of Worley Telescoping LV introducers.

  • SPECIFICATIONS

    SAFESHEATH CSG EXTRUDED CORE SERIES

    Size

    9 French I.D.

    Outer Diameter

    0.157"

    Inner Diameter

    0.130"

    Tip Inner Diameter

    0.122"

    Model

    Curve

    Length

    CSG/WORLEY-1-09

    Standard

    40cm

    CSG/WORLEY/L-1-09

    Long

    50cm

    CSG/WORLEY-2-09

    Jumbo

    50cm

    CSG-90-09

    Jumbo

    45cm

    Each SafeSheath CSG Extruded Core Series
    Introducer System kit includes:

    One tear-away sheath w/side port

    One dilator

    One curved guiding core

    One 18g needle

    One 135cm guidewire

    One transvalvular insertion tool (TVI)

    Five (5) kits per box
