SAFESHEATH CSG WORLEY BRAIDED CORE
Hemostatic Peel-away CS Introducer System

  • FEATURES

    Braided, soft-tipped core for Improved torque control and stability

    Peel-away sheath with break-away hemostasis valve

    Radio opaque tip marker on sheath and core for improved fluoroscopic visualization

    Multiple angles for CS lead placement

    Available in standard, long and jumbo sizes, for CS access in any anatomy

    Side port for “keep open” infusion and contrast injection

    Reduces risk of blood loss and air embolism

    Handles like standard peel-away introducer

    May be left in place during placement of other leads

    Permits lead exchange quickly, without further interventions or “sticks”

  • DESCRIPTION

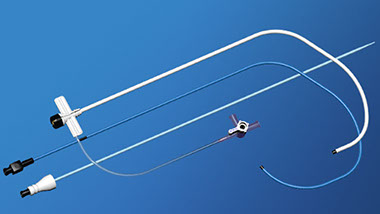

    The SafeSheath CSG Worley Braided Core Series is a splittable-valved, peel-away hemostatic introducer system that combines a unique curve design with a high-torque, radiopaque-tipped sheath and braided core for CS access.

    Designed for CS access, the SafeSheath CSG’s braided core pro­vides improved torque control. Both the introducer and core are radiopaque-tipped for better fluoroscopic visualization. Multiple introducer angles and the advancable core improve ease of CS placement.

    The CSG Worley enters the coronary sinus and remains in position during angiography and lead placement, remaining hemostatic during subsequent procedures. Incorporating a unique sheath curve, the SafeSheath CSG Worley is designed specifically for ventricular resynchronization therapy where the right-sided chamber is significantly dilated.

    The long gentle throw of the Worley causes its tip to virtually fall into the coronary sinus OS. Various shapes can be created by advancing the braided core into the sheath, better facilitating CS cannulation.

    Made from crush-resistant material, the CSG Worley is available in standard, long and jumbo sizes, enabling access to any anatomy. All 9 French CSG sheaths can be used as a coronary sinus access platform for our family of CSG Worley Telescoping LV introducers.

  • SPECIFICATIONS

    SAFESHEATH CSG WORLEY BRAIDED CORE SERIES

    Size

    9 French I.D.

    Outer Diameter

    0.157"

    Inner Diameter

    0.130"

    Tip Inner Diameter

    0.122"

    Model

    Curve

    Length

    CSG/WORLEY/BCor-1-09

    Standard

    40cm

    CSG/WORLEY/L/BCor-1-09

    Long

    50cm

    CSG/WORLEY/BCor-2-09

    Jumbo

    50cm

    Each SafeSheath CSG Worley Braided Core Series Introducer System kit includes:

    One tear-away sheath w/side port

    One dilator

    One curved guiding core

    One 18g needle

    One 12cc syringe

    One 135cm guidewire

    One transvalvular insertion tool (TVI)

    Five (5) kits per box
