SafeSheath® CSG® Worley Braided Core
Hemostatic Peel-away Introducer System for CS Access

DESCRIPTION

SPECIFICATIONS

INFO / VIDEO

RELATED PRODUCTS

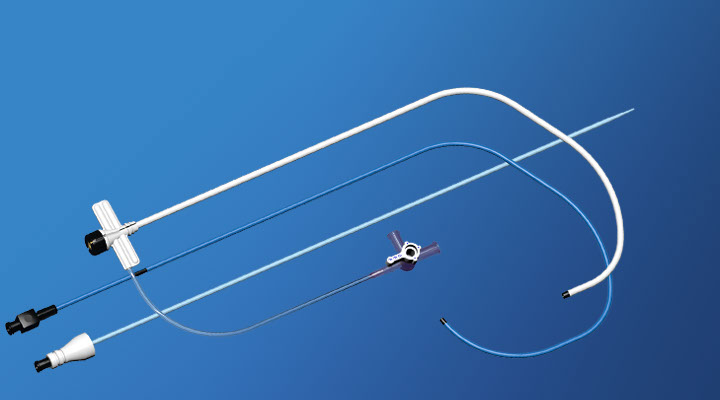

The SafeSheath CSG Worley Braided Core Series is a splittable-valved, peel-away hemostatic introducer system that combines a unique curve design with a high-torque, radiopaque-tipped sheath and braided core for CS access.

Designed for CS access, the SafeSheath CSG’s braided core pro­vides improved torque control. Both the introducer and core are radiopaque-tipped for better fluoroscopic visualization. Multiple introducer angles and the advancable core improve ease of CS placement.

The CSG Worley enters the coronary sinus and remains in position during angiography and lead placement, remaining hemostatic during subsequent procedures. Incorporating a unique sheath curve, the SafeSheath CSG Worley is designed specifically for ventricular resynchronization therapy where the right-sided chamber is significantly dilated.

The long gentle throw of the Worley causes its tip to virtually fall into the coronary sinus OS. Various shapes can be created by advancing the braided core into the sheath, better facilitating CS cannulation.

Made from crush-resistant material, the CSG Worley is available in standard, long and jumbo sizes, enabling access to any anatomy. All 9 French CSG sheaths can be used as a coronary sinus access platform for our family of CSG Worley Telescoping LV introducers.

The H. Lee SafeSheath® CSG® splittable hemostatic sheaths are protected by Patent Insurance. USA Patent 7,462,184. European Patent EP1360972. Other USA and Worldwide Patents pending. SafeSheath and CSG are registered trademarks of Pressure Products Medical Supplies, Inc.

The braided core provides torque control for the outer sheath. By advancing and manipulating the core, a continuum of shapes can be created, aiding in location of the coronary sinus OS

SAFESHEATH CSG WORLEY BRAIDED CORE SERIES

Size

9 French I.D.

Outer Diameter

0.157"

Inner Diameter

0.130"

Tip Inner Diameter

0.122"

Model

Curve

Length

CSG/WORLEY/BCor-1-09

Standard

40cm

CSG/WORLEY/L/BCor-1-09

Long

50cm

CSG/WORLEY/BCor-2-09

Jumbo

50cm

Each SafeSheath CSG Worley Braided Core Series Introducer System kit includes:

One tear-away sheath w/side port

One dilator

One curved guiding core

One 18g needle

One 12cc syringe

One 135cm guidewire

One transvalvular insertion tool (TVI)

Five (5) kits per box

Long

Jumbo

Standard

DOWNLOADS

VIEW

Video Demonstration

Video Demonstration

SafeSheath Worley Lateral Vein Introducers

Contrast Administration Kit

Transvalvular Insertion Tool (TVI)

Balloon Venography Catheter



Features

Braided, soft-tipped core for Improved torque control and stability

Peel-away sheath with break-away hemostasis valve

Radio opaque tip marker on sheath and core for improved fluoroscopic visualization

Multiple angles for CS lead placement

Available in standard, long and jumbo sizes, for CS access in any anatomy

Side port for “keep open” infusion and contrast injection

Reduces risk of blood loss and air embolism

Handles like standard peel-away introducer

May be left in place during placement of other leads

Permits lead exchange quickly, without further interventions or “sticks”
