SafeSheath® II
Hemostatic Peel-away Introducer System for Vascular Access

DESCRIPTION

SPECIFICATIONS

INFO / VIDEO

RELATED PRODUCTS

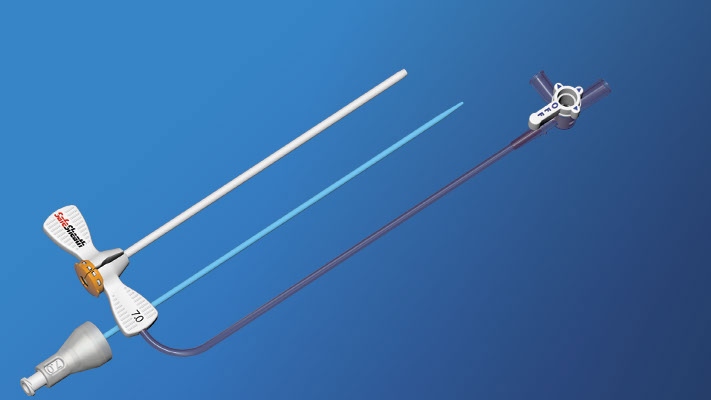

The SafeSheath II family of introducers combines the time-tested design of a tear-away sheath and hemostatic valve with new and improved features to reduce back bleeding and the possibility of air embolism during venous access.

SafeSheath II Introduced into the subclavian vein in the standard manner, the hemostatic valve of the SafeSheath II seals the device during lead introduction and positioning.

The easy splitting, ergonomically-shaped break-away hub greatly simplifies sheath removal after lead or catheter placement. Extruded score line construction ensures a clean, even peel every time. A new elastomer snap-locking dilator connector assures a firm attachment to the sheath.

The three-way stopcock side port  provides a convenient means of aspirating and flushing the introducer, as well as for contrast and fluid administration.

Finally, the advanced design of the lubricated hemostatic valve enables low insertion and withdrawal forces, delivering greater control during lead manipulation.

SafeSheath II Long  The 23cm Long provides access beyond the right subclavian-SVC junction, from both the left cephalic and subclavian veins. The extra length helps when upgrading existing systems by the addition of new leads and for atypical venous access sites—axillary or femoral. It also acts as a ‘supporting’ platform for the introduction of defibrillator leads.

Pressure Products is proud to offer the entire family of SafeSheath and SafeSheath II introducers, as well as a complete line of vascular access and lead delivery systems and accessories.

In 1994, Pressure Products revolutionized vascular access with the introduction of the SafeSheath® hemostatic-valved, peel-away introducer system, providing problem-free vascular access during device lead placement for more than 18 years.

Now, SafeSheath II advances the original design, continuing to revolutionize venous access by setting new standards for performance and features while facilitating better outcomes.

SafeSheath is a registered trademark of Pressure Products Medical Supplies, Inc. TEST

SAFESHEATH II STANDARD

SAFESHEATH II LONG

Length

13cm

Length

23cm

Dilator Length

19.5cm

Dilator Length

28.5cm

Guidewire Length

50cm

Guidewire Length

60cm

Guidewire O.D.

0.038"

Guidewire O.D.

0.038"

Model

Size

Hub Color

SS6

6.0 French

Green

SS7

7.0 French

Orange

SS8

8.0 French

Blue

SS85

8.5 French

Light Blue

SS9

9.0 French

Black

SS95

9.5 French

Light Black

SS10

10.0 French

Fuschia

SS105

10.5 French

Light Fuschia

SS11

11.0 French

Yellow

SS12

12.0 French

Brown

SS125

12.5 French

Light Brown

Model

Size

Hub Color

SSL6

6.0 French

Green

SSL7

7.0 French

Orange

SSL8

8.0 French

Blue

SSL9

9.0 French

Black

SSL10

10.0 French

Fuschia

SSL105

10.5 French

Light Fuschia

SSL11

11.0 French

Yellow

Each SafeSheath II Introducer System kit includes:

One tear-away sheath w/side port

One dilator

One 18g needle

One 10cc syringe

One guidewire (Standard-50cm / Long-60cm)

Five (5) kits per box

DOWNLOADS

VIEW

Video Demonstration

Transvalvular Insertion Tool (TVI)



Features

Standard 13cm length and 23cm Long model for access beyond the right subclavian-SVC junction

Extruded score line peel-away sheath for clean, even peel

Longer, smoother sheath tip to dilator transition for ease during sheath insertion

Lubricated hemostatic valve with low insertion and withdrawal forces yields greater control during lead manipulation, reducing risk of blood loss and air embolism

Convenient sideport for infusion and contrast injection

Wide range of French sizes

French size printed on handle and indicated by color-coded introducer cap

Elastomer snap-locking dilator connector with French size embossed on handle

Ergonomic, easy-splitting break-away hub



ORDER

Pressure Products offers a complete line of vascular access and lead delivery systems and accessories, as well as medical devices for femoral and pacemaker pocket hemostasis.
